Install and Configure Seesaw Load Balancer

In this age of multiprogramming, there are several processes running simultaneously and a lot of effort is put in to increase the throughput and work efficiency. The servers have to handle a lot of workload and sometimes it is a lot difficult to manage the traffic. Thus, there are Load balancers exist to distribute the several computing resources for optimal resource utilization, increase throughput and response time. What load balancers do is to distribute traffic load across multiple networks or clustered hosts to increase network availability, reliability and performance. Incoming requests are assigned a Virtual IP, also known as VIP on the load balancer itself, and then the load balancer passes the requests to the appropriate server behind it with least modification to the packets.  The server then responds to the load balancer with the required data which is finally sent to the client site by the load balancer.

Types of Load Balances

There are two types of Load Balancing Platforms – HAProxy and Linux Virtual Server, also known as LVS, and Seesaw v2 is a load balancing platform based on Linux virtual server.

Seesaw is a very flexible tool that can be utilized as a basic load balancer for small to medium size websites to advanced load balancer for corporate level networks where a dozen of servers interconnected. It supports some of advanced Ipv6 features such as anycast, multicast, unicast, and direct server return, multiple VLANs.

Having a robust design makes it suitable for easy maintenance, and reliability. It is designed in 2012 to meet Google’s unique needs, which the existing options didn’t meet. It is developed in Go that is a statically-typed language and is derived from C language. It contains many high-level language features such as garbage collection to clean up the memory, type safety, variable-length arrays, dynamic-typing capabilities, and key-value maps, and a large standard library. Golang is a compiled language developed by Google. Many modern applications like Docker, Kubernetes, InfluxDB, Gogs(Go Git Service) and Caddy are written in Go.

Pre-Requisite

  1. The link to download GoLang’s latest version for Linux is available in https://golang.org/dl/  in the form of archive file.

  2. Integrity of the tarball can be checked by comparing the hash value generated using the shassum command with the hash value provided in the website. If there is any difference in hash values one must always download a new tarball of the archive. If the check is successful then proceed ahead of the tutorial.

    $shasum –a 256 go1.11.5.linux-amd64.tar.gz

    In this command –a is used to specify the algorithm to generate hash value and this command as a whole performs the SHA256 checksum of the archive files.

  3. The next step is to extract the tar archive files, if the integrity check is successful, into the /usr/local directory using the command given below:
    $sudo tar –C /user/local –xvzf go1.11.5.linux-amd64.tar.gz

    In this command –C specifies the destination directory where the extracted files are sent.

  4. To configure Go Environment in Ubuntu set-up Go workspace by creating a directory ~/go_project_directory which is the root of the workspace. The workspace contains three major directories
    • bin – contains binary files of the golang.
    • src- which stores all source files.
    • pkg- which will store package objects.
    A directory tree can be created as follows:

    $mkdir –p ~/go_projects/{bin,src,pkg}
    $cd go_projects/
    $ls

  5. To execute Go, follow as rest of Linux programs without specifying its absolute path. The directory where golang is installed should be used as one of the values of $PATH environment variable.
    • To add /usr/local/go/bin to the PATH environment variable the following command must be run:
    $sudo   gedit   $HOME/.profile

    Or can open it in the terminal by using the command

     $vi .profile

    Then /usr/local/go/bin must be added to the path. Then all changes must be saved and the user is required to logout of the profile and again login for further proceedings.

    • All the paths are set in the profile by setting the values of GOPATH and GOBIN.
    export GOPATH=”$HOME/go”
     export GOBIN=”$GOPATH/bin”
    • If GoLang is installed in a custom directory other than the default(/usr/local) there is the requirement to specify that directory as the GOROOT variable. It is done in th .profile by
    export GOROOT=”$HOME/go
    export PATH=$PATH:/usr/local/go/bin:$GOPATH/bin

  6.  The GoLang environment upon successful set up can be checked in the terminal by running the following command:
    $go
    $go env

Installing Seesaw

  1. It was a requirement to install Go as Seesaw v2 is developed with it and depends on several Go packages like:
>golang.org/x/crypto/ssh
>github.com/golang/glog
> github.com/dlintw/goconf
>github.com/golang/protobuf/proto
>github.com/miekg/dns
  1. If one wishes to regenerate theprotobuf code,the protobuf comiler and Go protobuf compiler generator is also needed:
    $apt-get install protobuf-compiler
    $go get –u github.com/golamg/protobuf/{proto,proto-gen-go}

    1. Always it must be ensured that ${GOPATH}/bin is in the ${PATH} and in the seesaw directory.
    2. The next step is to run make command as it leads to addition of several binaries in the ${GOPATH}/bin with a seesaw_ prefix, these binaries must be installed to appropriate locations.

      $make test
      $make install
      $make proto

      After running the above three commands seesaw binaries are set to appropriate locations. it can be done by creating seesaw_install in ${GOPATH}/bin and executing the below script.

      SEESAW_BIN="/usr/local/seesaw"
      SEESAW_ETC="/etc/seesaw
      SEESAW_LOG="
      /var/log/seesaw"

      INIT=`ps -p 1 -o comm=`

      install -d "
      ${SEESAW_BIN}" "${SEESAW_ETC}" "${SEESAW_LOG}"
      install "
      ${GOPATH}/bin/seesaw_cli" /usr/bin/seesaw
      for component in {ecu,engine,ha,healthcheck,ncc,watchdog}; do
      install "
      ${GOPATH}/bin/seesaw_${component}" "${SEESAW_BIN}"
      done

      if [ $INIT = "
      init" ]; then
      install "
      etc/init/seesaw_watchdog.conf" "/etc/init"
      elif [ $INIT = "
      systemd" ]; then
      install "
      etc/systemd/system/seesaw_watchdog.service" "/etc/systemd/system"
      systemctl --system daemon-reload
      fi
      install "
      etc/seesaw/watchdog.cfg" "${SEESAW_ETC}"

      # Enable CAP_NET_RAW for seesaw binaries that require raw sockets.
      /sbin/setcap cap_net_raw+ep "
      ${SEESAW_BIN}/seesaw_ha"
      /sbin/setcap cap_net_raw+ep "
      ${SEESAW_BIN}/seesaw_healthcheck"



Configuring Seesaw

  1. Each node requires a seesaw.cfg file, known as the configuration file, where information about the node, and its belonging peer is stored. Protobuf is the cluster configuration file for each cluster, and is it in plain text format. This allows it to be opened with any Linux text editor like nano, vi. One can change the seesaw.cfg by using the following command:

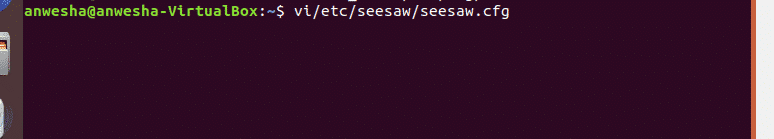

$vi/etc/seesaw/seesaw.cfg

An example of the seesaw.cfg file

[cluster]
anycast_enabled = false
name = au-syd
node_ipv4 = 192.168.
node_ipv6 = 2015:cafe::2
peer_ipv4 = 192.168.10.3
peer_ipv6 = 2015:cafe::3
vip_ipv4 = 192.168.10.1
vip_ipv6 = 2015:cafe::1

[config_server]
primary = seesaw-config1.example.com
secondary = seesaw-config2.example.com
tertiary = seesaw-config3.example.com

[interface]
node = eth0
lb = eth1

The description of the abovementioned cript is given below

  • anycast_enabled – Anycast can be enabled by setting this value.
  • name – The short name that is given to this cluster.
  • node_ipv4 – IPv4 address of the current Seesaw node.
  • peer_ipv4 – IPv4 address of our peer Seesaw node.
  • vip_ipv4 – The IPv4 address for current cluster virtual IP.



Conclusion

Due to the immense advantages of load balancing feature, it’s often used in many corporate networks. There are three types of delivery modes in general in IPv4 standard, Unicast, Multicast and Broadcast. Anycast is accepted in IPv6. Anycast is present rarely in IPv4. Anycast uses to identify an interface from a group of interfaces which connect to the same service.  VIPs are Virtual IP addresses that doesn’t belong to any physical network interface. A load balancer must be reliable and has the most important features in cloud services.

Many of the load balancers in market don’t have backend server monitoring and many other specific features. There are several load balancing methods on Open Systems Interconnection Layer 2/3/4. These layers are Data Link Layer, Network Layer and Transport Layer. Seesaw uses layer 4 technique with NAT AND DSR (Direct Server Return). DSR modifies the traffic flow or the load by allowing the server to respond directly to the client. All in all, The Seesaw load balancer is robust and reliable due to these aspects.
